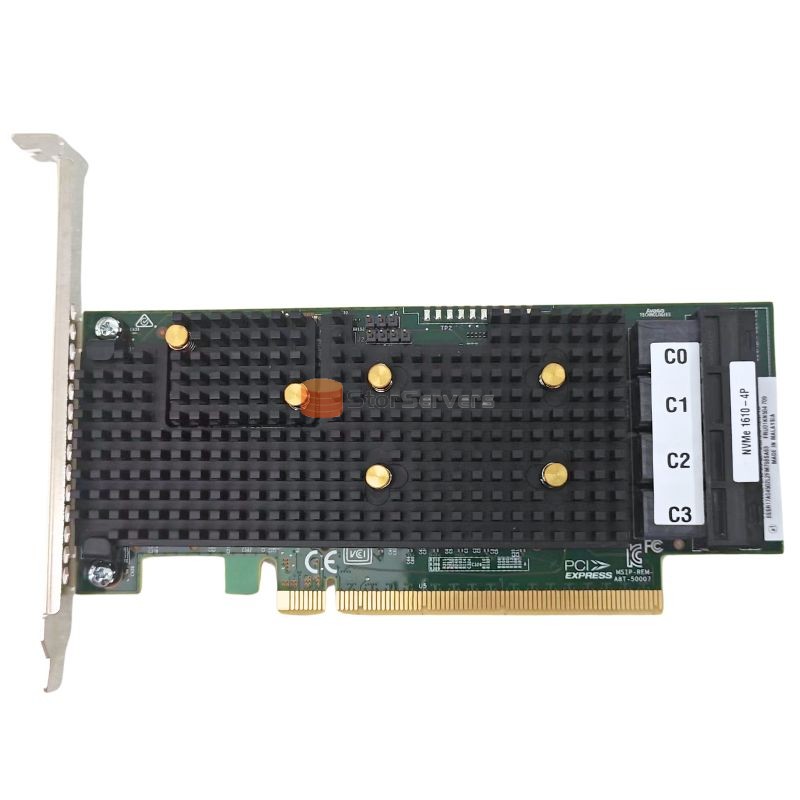

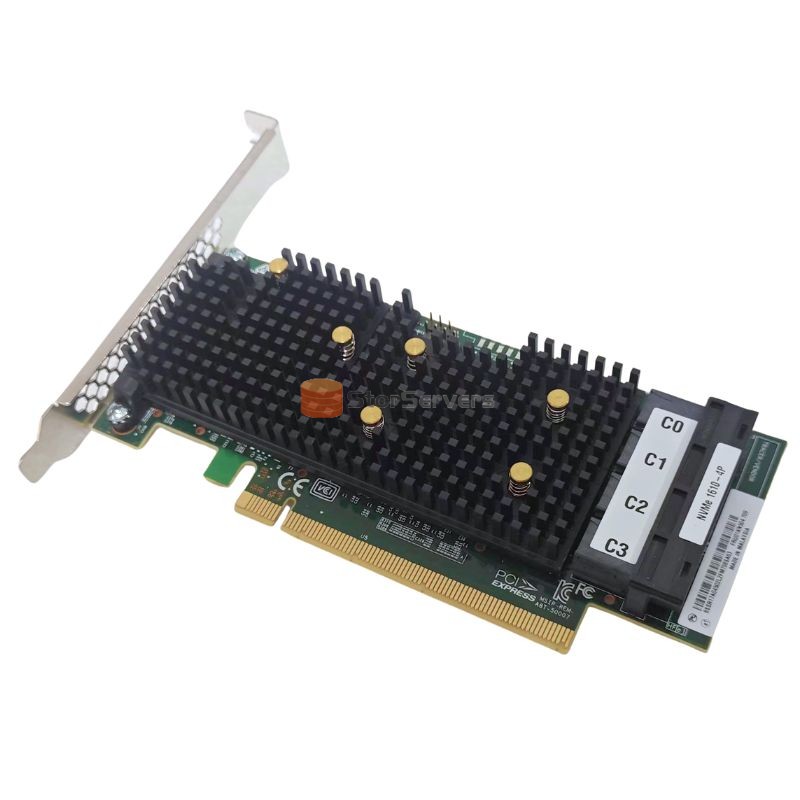

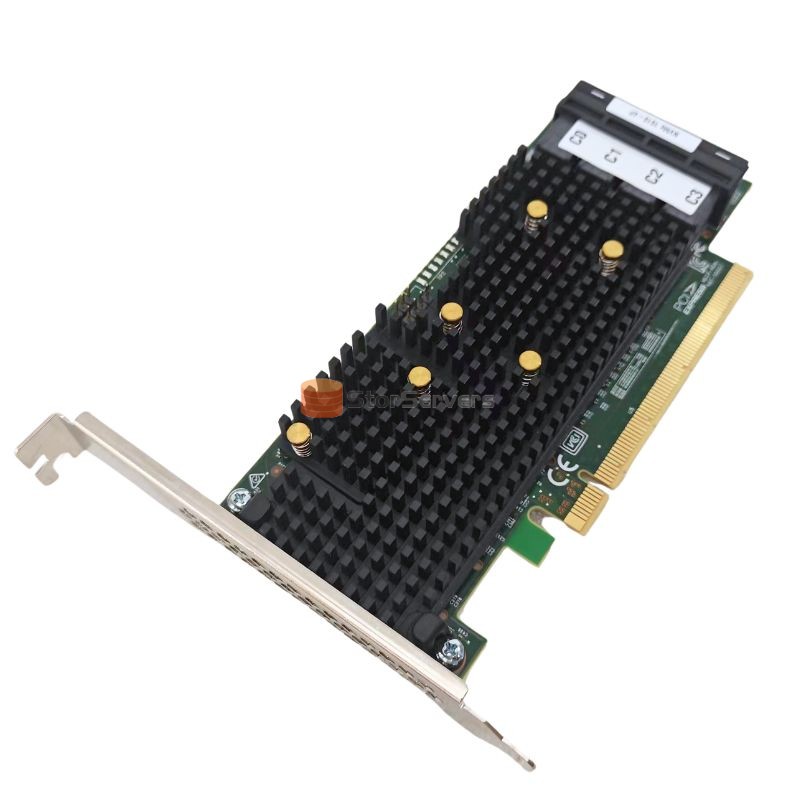

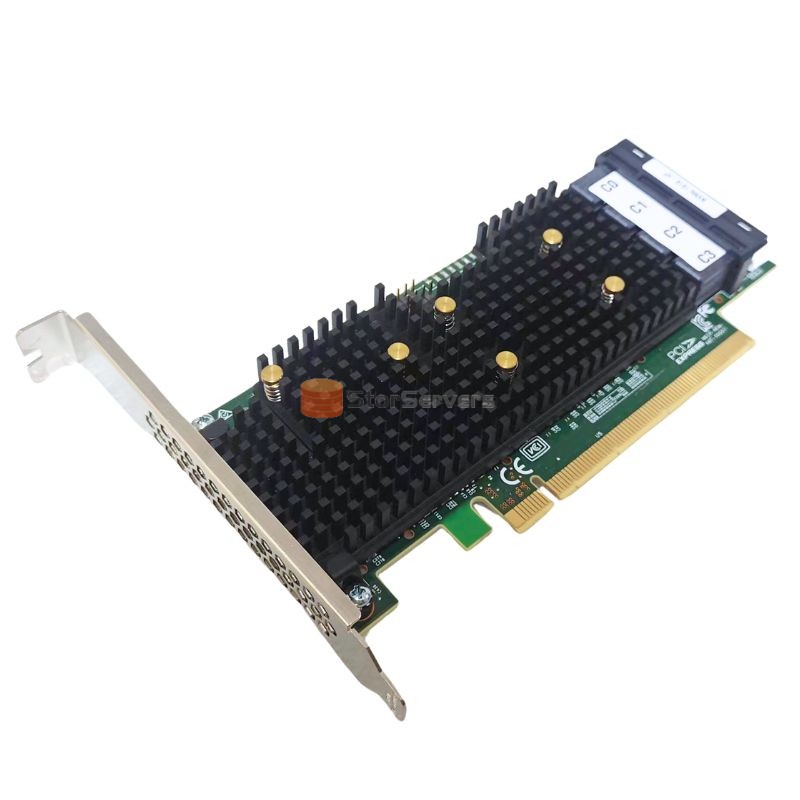

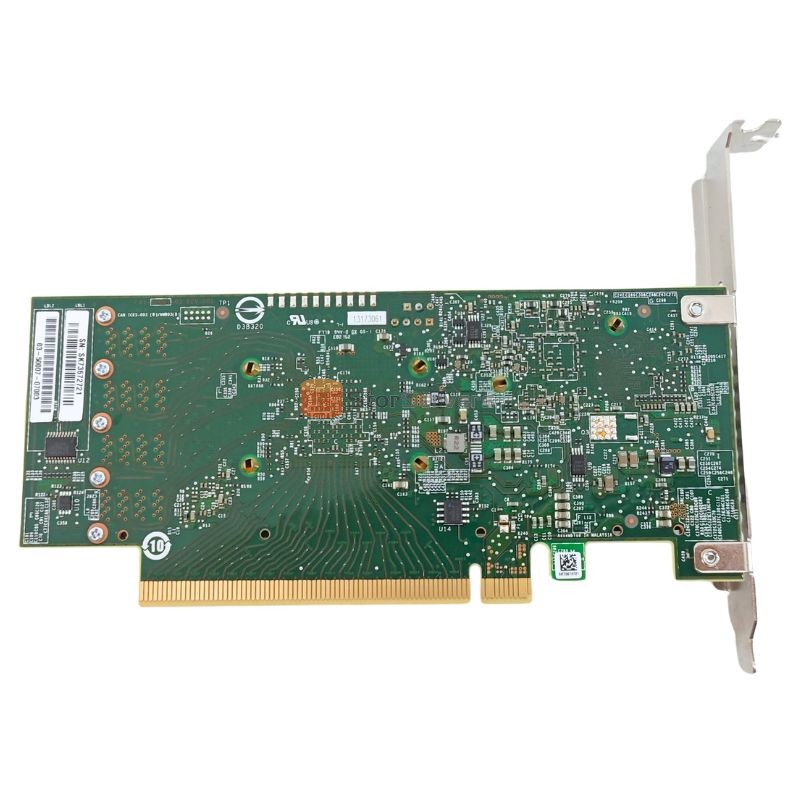

SAS SATA NVMe controller 1610-4p 4Y37A09763
Applications
Lenovo ThinkSystem 1610-4P (NVMe Pass Through Swap Card, Pure HBA) positioning: 4-port NVMe Pass Through (JBOD), PCIe 3.0 x16, no RAID, no cache, only NVMe. 1、 Core specifications (PN: 4Y37A09763/7Y37A01081) Model: ThinkSystem 1610-4P (NVMe Switch Adapter) Chip: Broadcom PEX9733 (PCIe 3.0 Switch Chip) Bus: PCIe 3.0 x16 (bandwidth 128Gb/s) Internal ports: 4 x NVMe (4 x SFF-8643 Mini SAS HD x4) Speed: PCIe 3.0 x4 per port (8Gb/s) NVMe 1.4/2.0 Cache: None (pure HBA, pass through only) RAID: Not supported (JBOD/pass through mode only) Appearance: LP half height (MD2), optional full height enclosure Power consumption: Approximately 15W.
Key Features
• Can connect up to 4 NVMe SSDs (direct connection)
• 4×SFF‑8643 Mini SAS HD x4
• NVMe、JBOD
• PEX9733 12Gb/s Tri Mode ROC chip
• No cache
Specification
| Model |
1610-4p |
| Adapter Type |
NVMe |
| Storage Controller |
PEX9733 |
| Connectors |
4×SFF‑8643 Mini SAS HD x4 |
| PCIe Host Interface |
PCIe 3.0 x16 |
| RAID Levels |
Lack |
Form Factor
|
half-height |
|
Ports
|
4 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
